Technical Details
- OmniGlobe® 60" single SXGA+

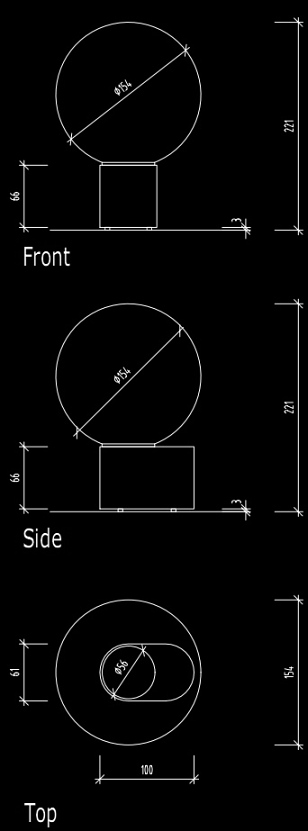

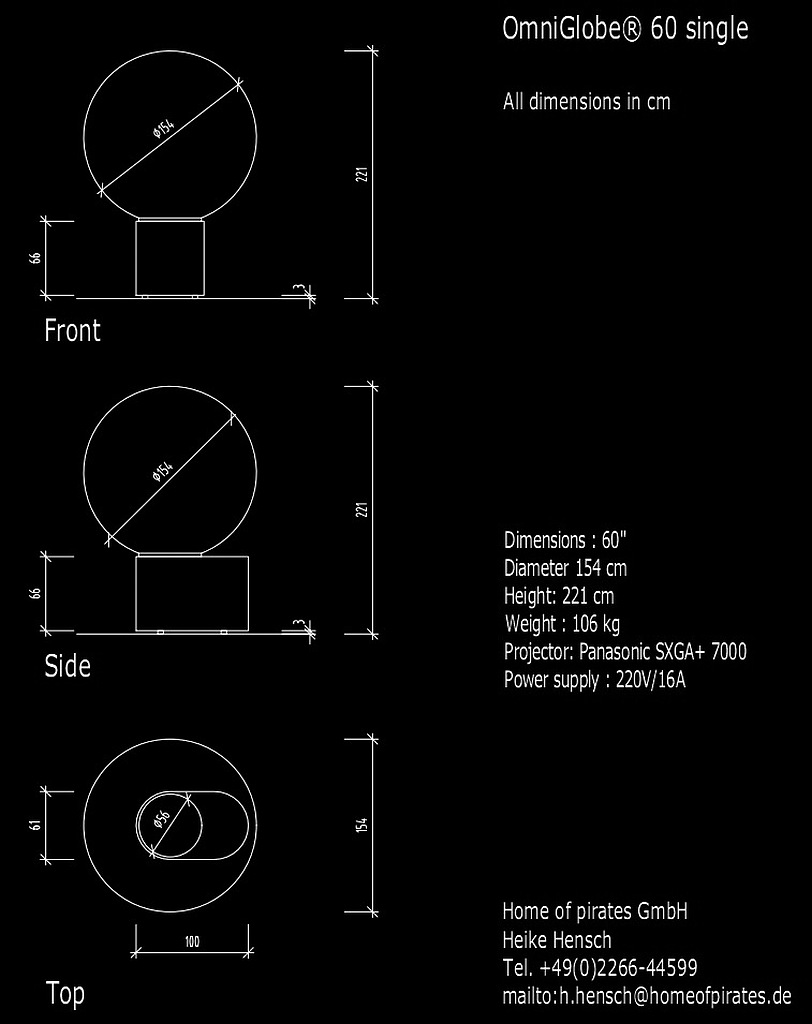

- Dimensions : 60"
- Diameter 154 cm
- Height: 215 cm (with pedestral)
- Weight : 106 kg
- Material: special optical coating on acrylic glass
- Projector: Panasonic SXGA+ 7000
- Power supply : 220V/16A
System based on an inside-projection use one beamer for projecting a world map through a hole at the sphere's top via optical system onto an acrylic glass ball.
The optical system is based on a patented convex mirror assembly.
Basic requirements for the installation of the Omniglobe®:
Please make sure that all access doors, elevators, stairways etc. allow for the dimensions of the transport cases, mimimum doorwidth is 94 cm:
- 2 cases 164 L x 164 W x 91 H centimeter
- 1 case 164 L x 58 W x 72 H centimeter
- 1 case 93 L x 60 W x 73 H centimeter
- 1 case 80 L x 77 W x 45 H centimeter
Lighting conditions:
The impressive illumination of the Omniglobe® is best experienced in dark surroundings. For events taking place in daylight or under especially bright conditions we recommend that the location assigned to the Omniglobe® is adequately darkened.
download printable Version of all technical Details (english Version) (PDF 63 kB)
If you've any questions, please contact us!
